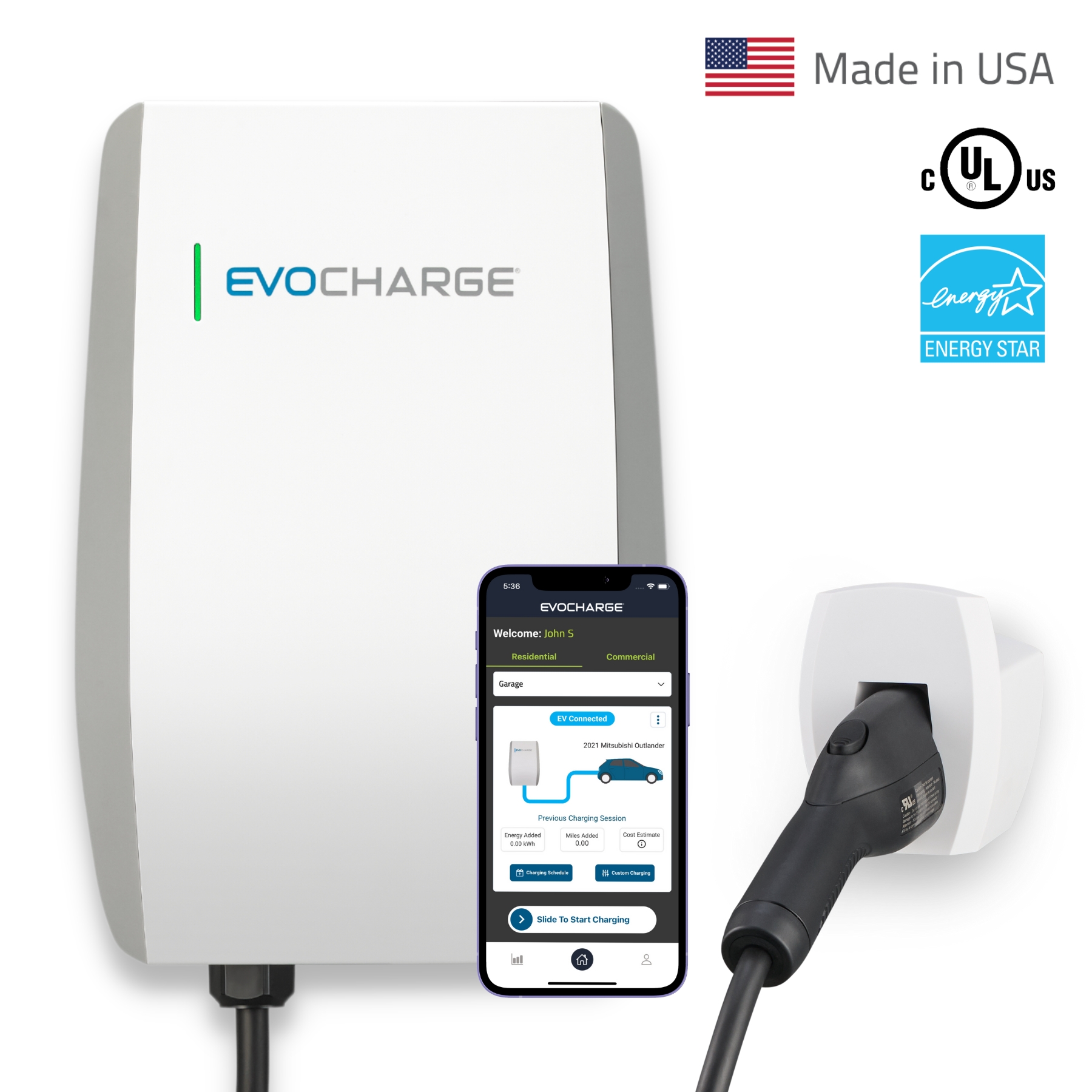

EvoCharge Home 50 Amp Smart EV Charger
$599.00
-
Simplify your home EV charging experience with the EvoCharge Home 50. Offering fast charging capabilities and a user-friendly mobile app, this charger ensures your electric vehicle is always charged and ready. Adjustable amperage simplifies installation and maximizes charging speed from your home’s existing electrical.
View Rebates and Incentives by State
- Hardwired power connection for safety and reliability
- Adjustable power output, 16 to 50A
- Flexibility to fit your home’s electrical
- Charge any electric vehicle, including Tesla
- Simple management via the EvoCharge App
- 25ft charging cable with cold weather flexibility
- NEMA 4 for Indoor/Outdoor use and IK10 impact rated
- Made in the USA from domestic and foreign parts
- 3-Year Limited Warranty
WHAT’S INCLUDED
- Charging station with 25ft charging cable
- Remote holster
- Mounting bracket and hardware
- Quick Installation Guide
- Mobile App Quick Start Guide
Specifications
| Power Output | Maximum 12kW, 50A (at 240VAC) Adjustable to: 48A (Factory setting), 40A, 32A, 24A, 16A |
| Input Voltage | 208/240 VAC, 60Hz, 1Ø, Max 120VAC from Ground |
| Power Wiring | 3 Wire - L1, L2, G (No Neutral) |
| Connector Type | SAE J1772 |
| Safety Protections | Ground Fault Detection (Internal GFCI): 20 mA CCID Earth Ground Detection Over/Under Temperature Surge Protection per IEC 61851-21-2 |
| Charging Cable Length | 25 ft (7.62 m) |
| Metering Accuracy | 1% |
| Wi-Fi | 2.4 GHz and 5 GHz (802.11 b/g/n/ac) |
| Bluetooth | Version 5.0 (BLE) |
| Protocols | OCPP 1.6J |
| Weight and Dimensions | 11.68lbs (5.3 kg) 9.7in (W) x 13.8in (H) x 3.5in (D) (245mm x 351mm x 88mm) |
| Operational Ratings | NEMA 4, Indoor/Outdoor Rated -22°F to 122°F (-30°C to 50°C) IK10 Impact Rating Humidity: 95% Non-Condensing |
| Storage Ratings | -40⁰F to 158⁰F (-40⁰C to 70⁰C) Humidity: 95% Non-Condensing |
| Display | LED Charge Status Indicator (Power/Ready, Charging, Fault) |
| Mounting Options | Mounting Bracket for Wall or Pedestal Installation |
| Cable Management | Remote Charging Handle Holster and Cable Hook Included |
| Certifications | UL2594, UL2231-1, UL2231-2, UL1998, ENERGY STAR certified |
| EMC Compliance | FCC Part 15 Class B |
| IEC/ANSI | IEC 60204-1 IEC 61000-4-2IEC 61000-4-3 IEC 61000-4-6 IEC 61000-6- 2 IEC 61000-4-4 EN 55014-2 + IEC 61000-4-11IEC 61000-4-8 IEEE 4 |
| Warranty | Standard 3 Year Manufacture Limited Liability and Optional Paid 2 Year Extension |
FAQ’s
Does this charger work with my EV?
Yes. EvoCharge Home 50 will work with any electric vehicle including Tesla, with the Tesla provided J1772 to NACS adaptor.
Do I need a Level 2 charging station?
Yes. With over 80% of charging happening at home a Level 2 charging station drastically reduces the time it takes to fully charge your vehicle. Charging at home also provides a low-cost and convenient way to charge. The EvoCharge Home 50 provides up to 45 miles of range per hour charged.
To see how fast your vehicle can charge use our EV Charge Time Tool
Is the EvoCharge Home 50 certified?
Yes. The Home 50 has been rigorously tested and certified by Underwriter’s Laboratory (UL).
Do I plug-in or hardwire the charging station?
EvoCharge Home 50 is only available as a hardwired unit.
A hardwired installation is safer and more reliable for high amperage, continuous use electrical products. In addition the 2023 NEC(National Electrical Code) for residential homes requires charging stations over 40A(9.6kw) to be hardwired.
What is the EvoCharge warranty?
EvoCharge warrants each charging station for a period of three(3) years.
For complete details view our warranty policy.
Do I need an electrician to install the EvoCharge Home 50?
Yes. The EvoCharge Home 50 is a hardwired only installation and we recommend a licensed electrician to perform the install. This unit has convenient hardwire access through the bottom of the unit or the optional knockout plug on the back of the unit for a clean look and concealed power connection.
For more details view the install instructions in the product manual.
Can I install the charger outdoors?
Yes, the Home 50 can be installed either indoors or outdoors. The NEMA 4 rated weather-tight (weatherproof) enclosure protects the charger from dirt, rain, sleet, snow, windblown dust, splashing water, hose-directed water and external ice formation. The unit is also IK10 impact rated, one of the highest ratings for enclosures to resist damage from impacts due to harsh environments.

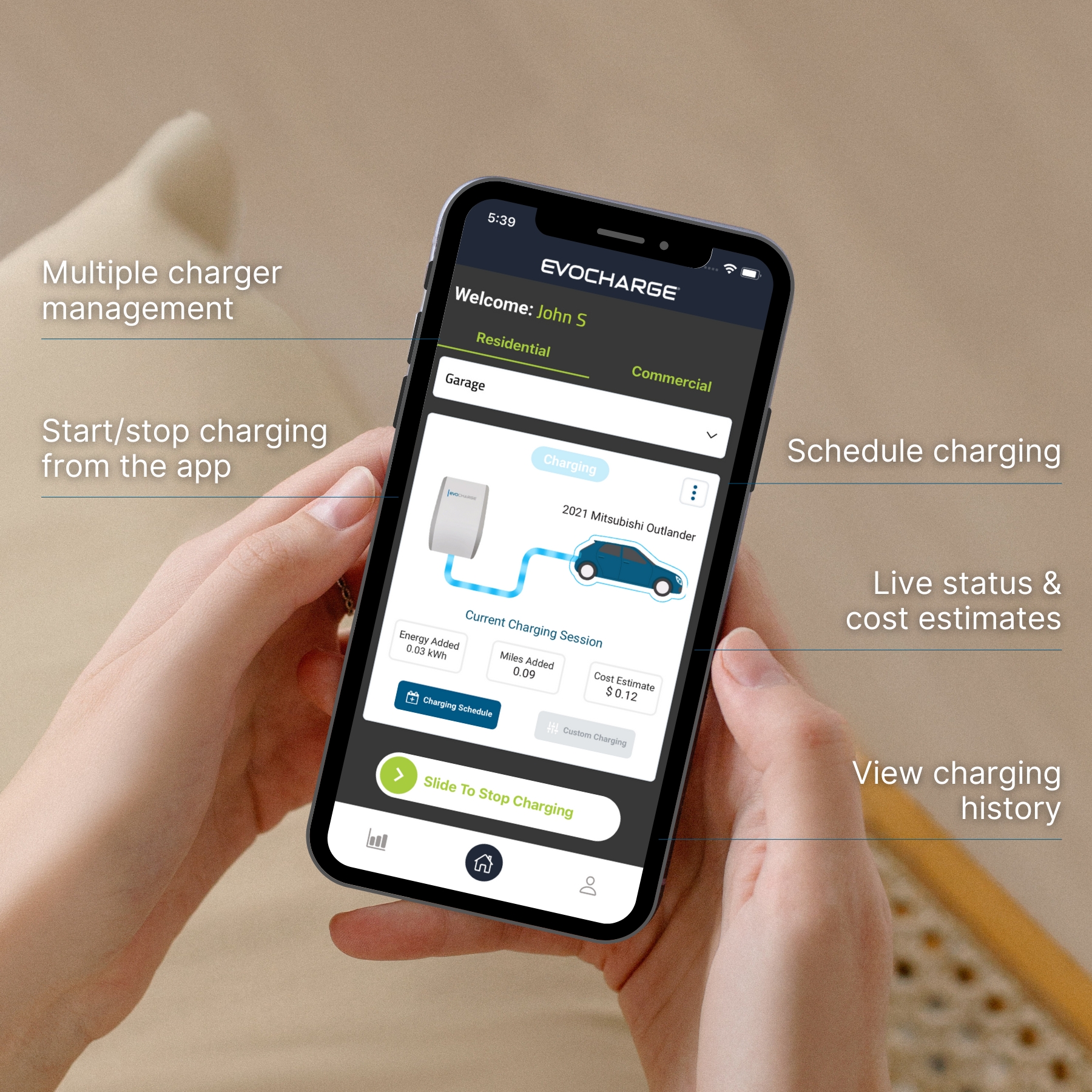

What do I get with the mobile app?
The EvoCharge mobile app is designed to simplify home charging. With the app you will be able to:
- Schedule automatic charging times for when electrical rates are cheaper
- Share access to the charger with family and friends
- Save all your vehicles to your virtual garage
- Add your utility rates for charging cost estimates
- View live charging status and past charging history

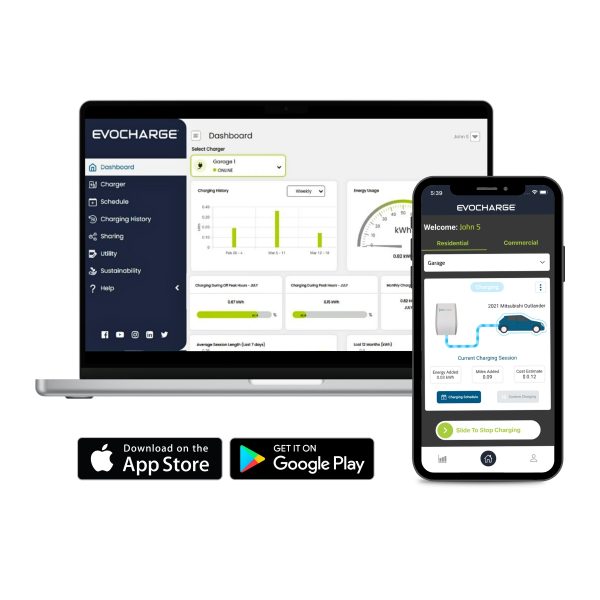

- Free access to the online web portal for management, additional data, and reporting
Why can’t I see the chargers Bluetooth signal?
The EvoCharge Home 50 automatically broadcasts the Bluetooth signal for 30 minutes once the unit is powered on. After those 30 minutes to rebroadcast the signal you will need to power cycle the charger by flipping the breaker off and then on again.
Is the Home 50 smart home compatible?
The EvoCharge Home 50 is compatible with Alexa, Siri, and Google Home.
Ask a Question
-
I have a circuit wired in with #6 wire for a 48 amp charger with a 60amp breaker. If this unit is factory set for 48 amps wouldn't my circuit be quite adequate?
-
Q I have a circuit wired in with #6 wire for a 48 amp charger with a 60amp breaker. If this unit is...... Read more answer nowA Yes, if you have 6 AWG on a 60 amp breaker this is adequate for the 48A setting. The Home 50 does come configured out of the box with the 48A output. If you wanted to get the maximum amperage(50 amps) you would need to use 4AWG wire and a 70A breaker.
Is the mobil app required for using the charger and is there a fee (one time, monthly, annual) for use of the app?
-
Q Is the mobil app required for using the charger and is there a fee (one time, monthly, annual) fo...... Read more answer nowA
The mobile app is always free to use (including the desktop portal). The mobile app is used to onboard the charger, connect it to WiFi, and manage charging sessions. However if you don't have WiFi or don't want to use the app you can still charge your vehicle.
1) Does it have a 220Volt, NEMA 10-30 3 prong straight blade Plug ? 2) Is it compactable to a 2019 Chevy Bolt?
-
Q 1) Does it have a 220Volt, NEMA 10-30 3 prong straight blade Plug ? 2) Is it compactable to a 201...... Read more answer nowA
This is a 208-240V EV charger that is hardwired only. We do not sell a plug for this. Any EV charger being used above 40Amps requires a hardwired connection as stated in the National Electric Code. This charger will work for any electric vehicle in North America including a 2019 Chevy Bolt. Thank you.
How long does shipping take
-
A
The Home 50 will leave our Minnesota warehouse within 2 business days. We use FedEx ground which has 2-5 business days for transit depending on the destination.
4 reviews for EvoCharge Home 50 Amp Smart EV Charger
04 Customer(s) recommended this item
-
Evocharge 50
We were originally using the plug in charger that came with our car. But after needing to take it with us on a couple of trips we decided that something more permanent needed to be installed. After checking we decided on the Evocharge 50. We liked the 25 ft cord that is provided with the unit. Also the availability to have different choices of charging rate based on house wiring was great. We currently are using the 40 amp due to our 50 amp circuit. It was charging much faster than the plug in charger we were using in the same circuit.
The app is also very good. A neat thing that it has is availability to see how much a charge costs . After putting. In our Xcel rate it calculated the amount. It also comes with a holster for the cord which makes getting the cord off the ground very convenient. Would highly recommend the Evocharger 50 to anyone looking for a high quality hardwired charger.
July 26, 2024Verified Review -
Great Second Charger
The EvoCharge Home 50 is my 4th charger. I started with a 32 amp charger, then I went to a 40 amp one. With the addition of our second EV I added a second 40 amp charger. When I added the second charger I did not install a second circuit, instead I purchased the NeoCharge smart splitter and ran both of the 40 amp chargers off one circuit. This all worked, but I never really liked it. Also, my second EV has the ability to charge at 11 kW, or could take advantage of a 50 amp charger. With the availability of the EvoCharge Home 50 and one of my 40 amp chargers failing, I decided to install the EvoCharge Home 50 on a new dedicated circuit. Besides, the Home 50 needs to be hard wired and as such could not be used with the NeoCharge smart spitter.
Installation of the 50 amp charger was a jump from what was needed for the 40 amp unit. The circuit needed a 70 amp breaker and 4 sized wire. I like that 4 wire can actually handle current up to 85 amps (and more for runs less than 50 feet). Meaning that for the Home 50, I’m not living on the edge of what the wiring can tolerate. From a peace of mind point of view, I really like the hard wired component and the increased wiring size for the Home 50. As you would expect, the cost for installation for the 50 amp charger was more than for the 40 amp unit. It is hard to say what the comparative added cost was since they are in different locations, at different times, and required different amounts of equipment and time. My best guess is that for me, the Home 50 installation cost was about 50% more of what a 40 amp unit would have cost. Considering the circuit that I got from the install – it was well worth it.
Concerning the Home 50 itself, I have been using it for a little over 1 month now. I like the unit. It is very well built and has a nice look to it. I have had no issues with it. I do like having a separate holster holder – it allowed me to position the charge where it was best located and the cable, and handle where it is easy to get to. You can’t consider a charger now without looking at the available software. Together they meet my needs. I needed to be able to set a schedule for when to charge. I don’t want both chargers on at the same time (they are made by different manufactures and have no way of knowing when the other is being used). It notifies me of when a charge starts and stops. I can start a charge remotely (assuming it is plugged into the car). I can see a history of past charging sessions. The unit has an indicator light that notifies me of its state. It gives me an estimation of the cost of a charger and the number of miles added from the charge. Overall, I have found the software and charger to work great for my needs. Would get it again.
July 15, 2024Verified Review
-
Impressed
I recently replaced an older charger with the EvoCharge Home 50. The installation was easy and the instruction manual is well laid out. The app is intuitive and easy to understand. The unit looks great and the charging cord is super flexible and easy to store. Completely satisfied with this EVSE and would highly recommend it.
July 10, 2024Verified Review
-
Evocharge 50
I’ve been using my Evocharge 50 for about 2 months and have nothing but positives to report. Using the app makes charging easy and worry free. My previous experience with a home charger was unsatisfying with multiple “dropped” charging episodes. I have had no issues with my Evocharge 50; it charges quickly and the extra long cord means I don’t have to back up into the garage.
Five stars!
July 7, 2024Verified Review
